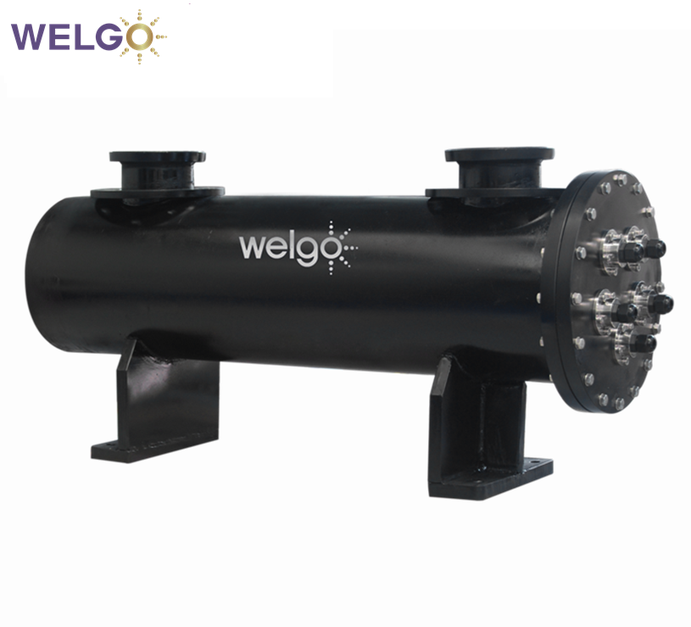

Medium Pressure UV Disinfection System
Characterized by a high power and strong UV, it is especially applicable to the sterilization of a large flow of water.
Product Features
Lamp life: 5000-7500 hours
UV intensity is 20-200 times higher compared to traditional low pressure high intensity lamps.
Lamp output power can be adjusted manually from 50-100%
Air-cooled,heat-dissipating electronic ballasts.
Automatic quartz tube cleaning system.
Touch HMI.
Perfect online monitoring and protection features.
PLC controller + touch screen.
HMI displays the operating parameters of each lamp
Read more

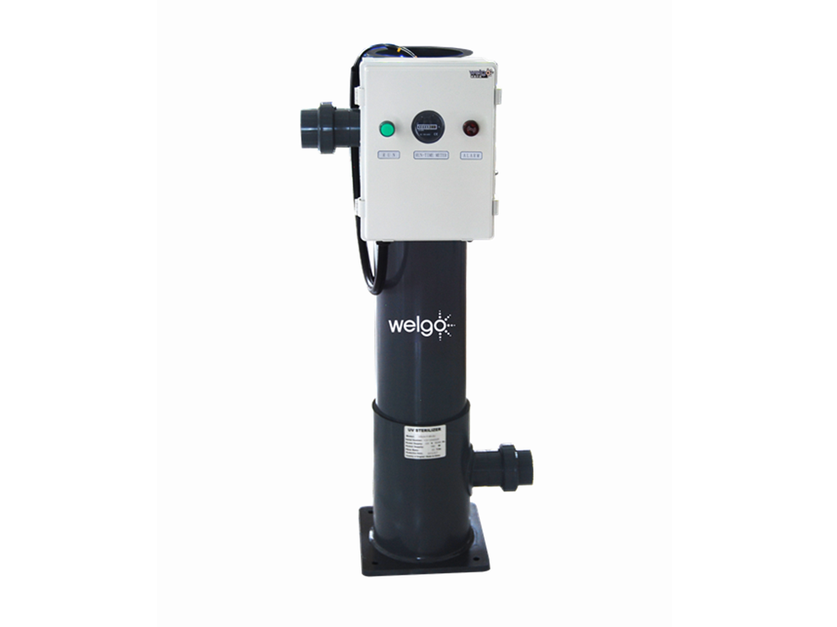

UV Water Sterilizer
UV water sterilizer which comes with automatic mechnical wiper system for cleaning the quartz tube surface.
Equipped with PLC and touch screencontrol system.It can monitor the operating status ofthe equipment, control the automaticcleaningfrequency, display the accu-mulated operating time of the lamp,operating status, system failure alarmand UVintensityvalue.Optional function:temperature controlsensor.
Read more
Plate-type Water-cooled Ozone Generator
1.Ozone output: 0.1-5.0Kg/hr
2.Ozone productivity：125-200g/Nm³
3.Each ozone module is both an unit and an independent product.
Ozone Generation Unit: Flat-panel ozone discharge structure, water-cooled heat dissipation.
Air Intake Source: Oxygen (recommended purity 95%).
The heat generated during this process is carried away by external (circulating) cooling water, ensuring the stability and continuity of the ozone generation process. As a result, high-concentration ozone gas is generated.
Ultra-low Energy Consumption: Compared to traditional tube-type ozone generators, energy consumption is reduced by 20%.
Read more
Oxygen Sources Ozone Generator
Oil-free air compressor
Coated carbon steel shell
Air cooling Ti-ceramic ozone generation unit
Air cooling heat dissipation
Ozone production: 5-500g/h
Cooling mode: Built-in air cooling
Air inlet dew point:-60°C
Power supply: AC220V/380V TN-S
Resistanceto earth: <4Ω
Ozone concentration:0-105mg/L
Ambient relative humidity:<85%
Ambient temperature: 1°C-38°C
Yield adjustment: 0-100%
Leakage concentration:<0.02ppm
Read more
Advanced oxidation process system
Pool volume: 180-900m3
Flow rate:7-45m3/hr
Advanced Oxidation Processes, characterised by the generation of hydroxyl radicals (·OH).
Combines all the benefits of high concentrations of dissolved ozone, UV light and hydroxyl radicals.
Uses 03 as the oxidant and produces hydroxyl radicals (·0H) under high intensity UV radiation.
Rapidly breaks down organic contaminants in water that are difficult to remove by a single pro-cess of chlorine, ozone or UV light.
Effectively kills chlorine-resistant microorganisms in water.
Reduces levels of chloramines and trihalomethanes, reduces irritation to skin, eyes and respiratory system.
Read more
