Products
Self Cleaning Filters

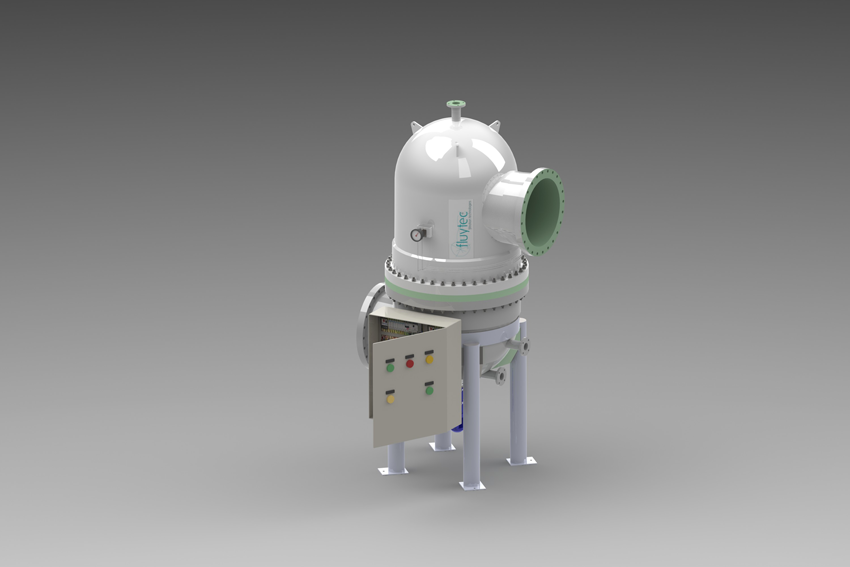

Automatic Backwash SCF
Fluytec Automatic Backwash filters allow continuous filtering together with a backwash process. This equipment is especially appropriate for applications in which filtering continuity is a key parameter.
Available Materials: FRP/GRP SS / CSRL for bodies. Stainless Steel filter elements (from AISI316
up to 254SMO -PREn:43-,).
The addition of auxiliary elements (electrical panel, PLC, differential pressure gauge, geared motor and solenoid valve) allow the configuration of compact and completely automatic eq
Ultrafiltration

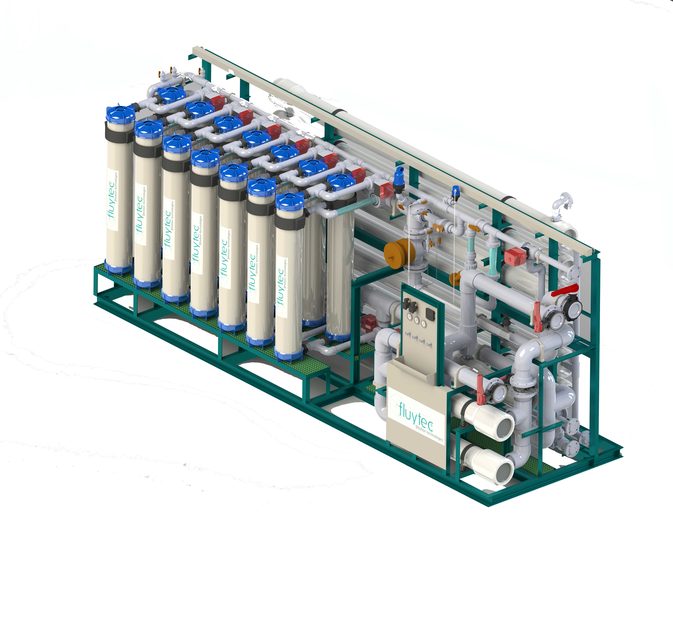

Continuous Ultrafiltration (c-UF)
UF System with Continuous permeate production even during cleanings. This technology eliminates the need for backwash pumps and blowers, buffer/backwash tanks and transfer pumps to the process located downstream (i.e. Reverse Osmosis).
c-UF enables the user to take advantage of the following main benefits:
• Continuous Production even during cleanings
• Lower Footprint (50%)
• Lower Capital and Operational Expenditures
Filtering Elements / Consumables
Wound Polypropylene Cartridges
PP Wound cartridges: Made of 100% polypropylene thread for deep filtering. 10" 20" 30" 40" 50" 70" and wide range of selectivity options.
Filtering Elements / Consumables

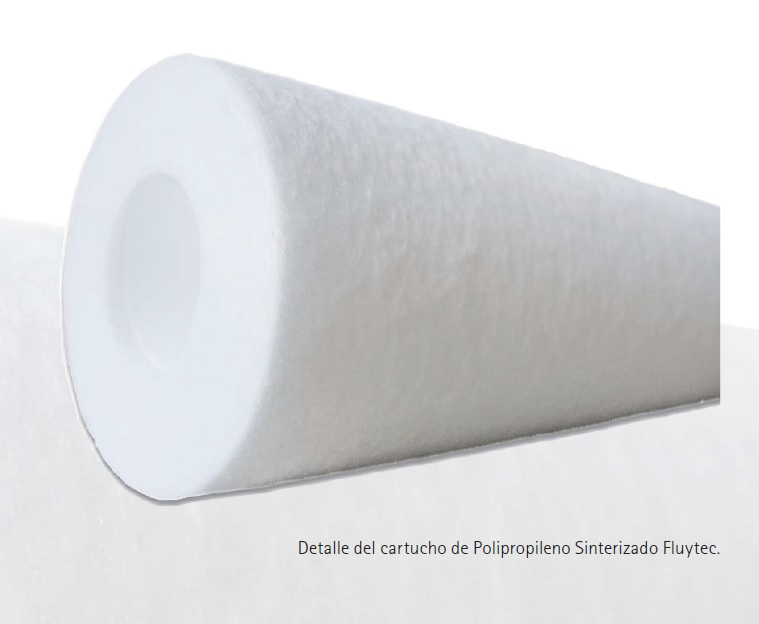

Melt Blown Polypropylene Cartridges
PP Melt-blown cartridges: Made of 100% polypropylene foam, they provide properties of permeability, water absorption and mechanical resistance. 250, 500, 750, 1000, 1250 mm
Filtering Elements / Collecting Nozzles

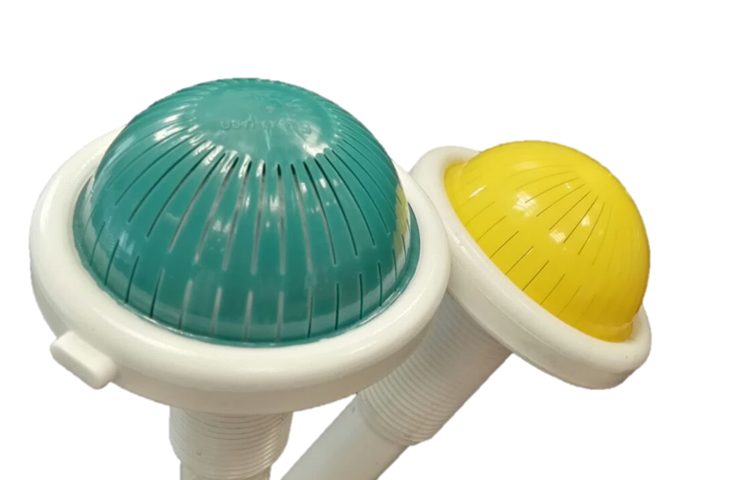

Polypropylene collector nozzles
Polypropylene collector nozzles Made of 100% polypropylene, their physical and mechanical properties make them especially suitable for applications requiring high filtering throughput with minimal load loss.
Filtering Elements / Consumables

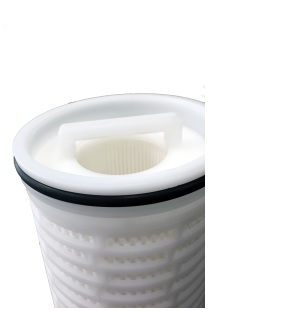

PP High Flow Pleated Cartridges
PP Pleated cartridges: Made with 100% polypropylene pleated thread, they combine a high trapping capacity with high filtering efficiency. 40" & 60"
Mixing Technology

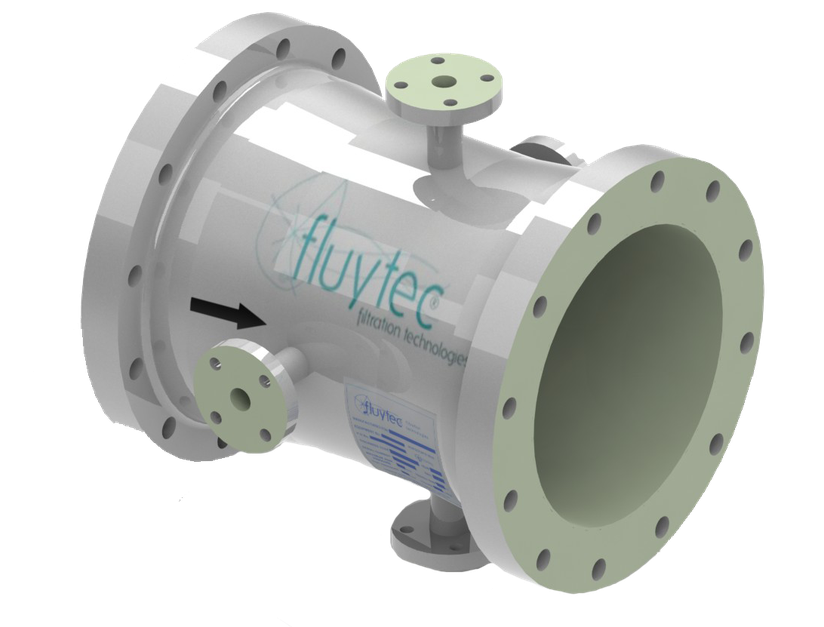

FRP/GRP Static Mixers
Fluytec´s proprietary mixing technology: static mixers fully manufactured in non-corrosive material: FRP/GRP. Standard and Customized Design Codes Upon Request (European & American codes).
Self Cleaning Filters

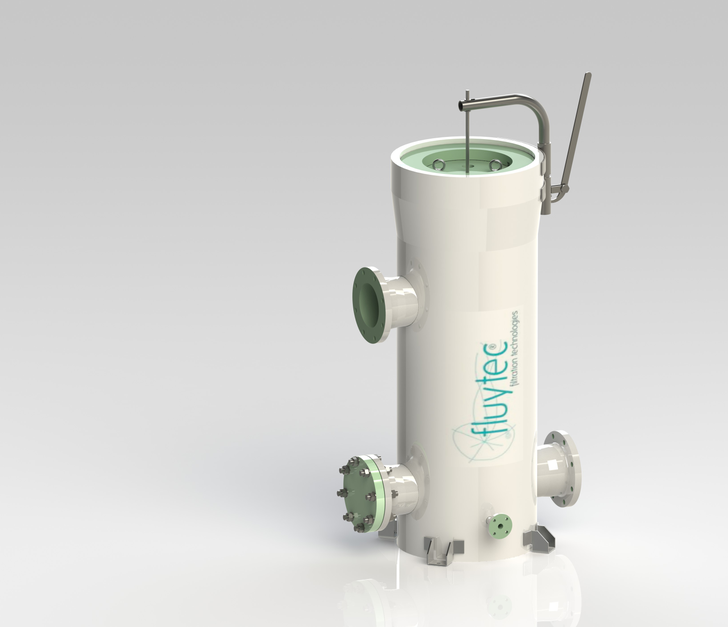

FCP Series: No motor SCF
Fluytec FCP Series Self Cleaning Filters combine the compactness and properties of designed backwash system that avoids the need of any external driving force (motor, air, etc.).
Ultrafiltration

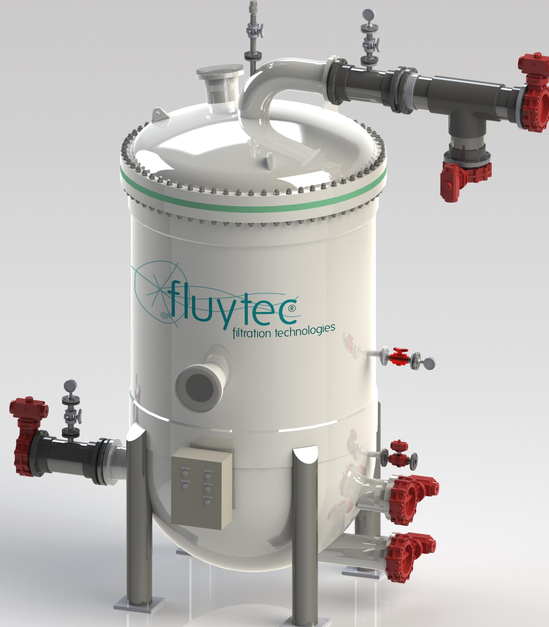

Integrated Ultrafiltration (i-UF)
Autoscreening & Ultrafiltration Stages Integrated in the same vessel.
The i-UF represents the natural evolution of UF filtration, where the integration of the screening and membrane filtration in a single vessel strengthens the footprint, pressure rating and robustness benefits of vessel contained UF.
The i-UF vessel design and manufacturing in FRP/GRP allows installing the system outdoors. FRP has proven to have a perfect corrosion resistance behaviour
Cartridge Filter Housings

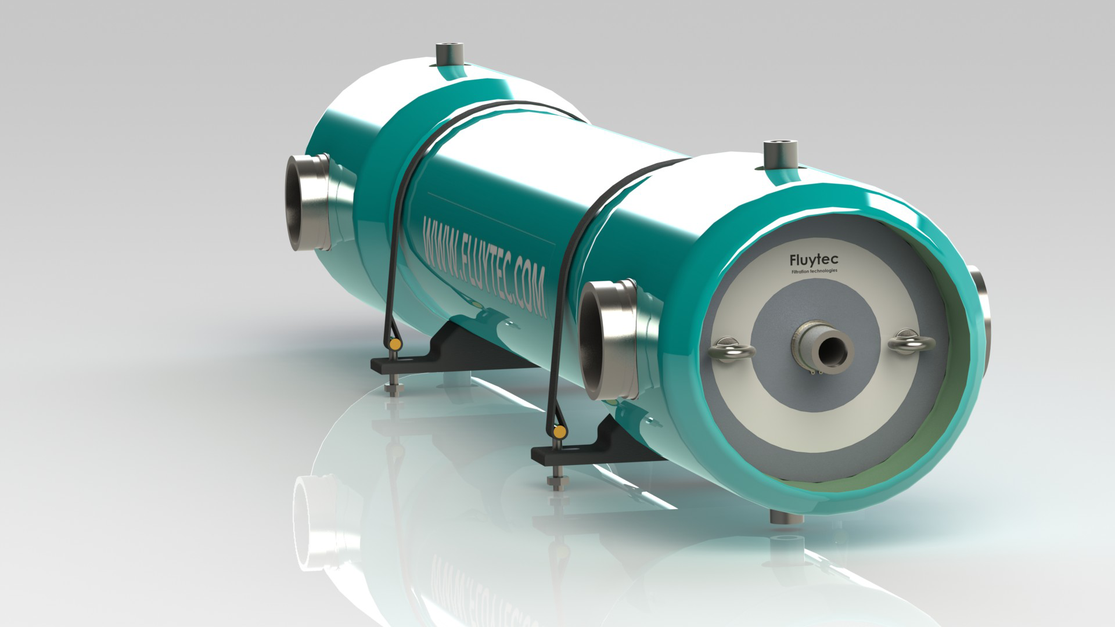

FRP/GRP Cartridge Filter Housings Boltless Series
In the quest to develop heavy duty equipment for the Industry’s most demanding applications,
Fluytec has combined Glass-fiber Reinforced Polyester (FRP/GRP) vessels with a Proprietary
Boltless Opening. As a result, Fluytec has created a unique Quick Opening and fully Non-
Corrosive filter.
Boltless Housings are divided in three series:
BL XS Housings: 5 standard DOE cartridges or 1 HF pleated cartridge
BL Housings: from 7 to 70 cartridge elements
BL XL Housings: from 80 up to 215 cartridges
Cartridge Filter Housings
FRP/GRP Cartridge Filter Housings Boltless Series
In the quest to develop heavy duty equipment for the Industry’s most demanding applications,
Fluytec has combined Glass-fiber Reinforced Polyester (FRP/GRP) vessels with a Proprietary
Boltless Opening. As a result, Fluytec has created a unique Quick Opening and fully Non-
Corrosive filter.
Boltless Housings are divided in three series:
BL XS Housings: 5 standard DOE cartridges or 1 HF pleated cartridge
BL Housings: from 7 to 70 cartridge elements
BL XL Housings: from 80 up to 215 cartridges
Cartridge Filter Housings

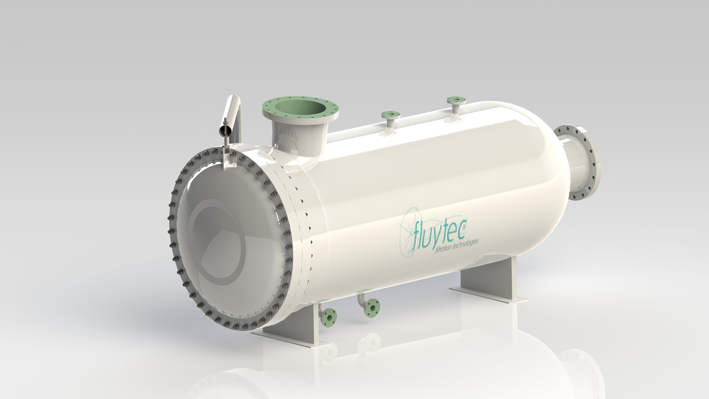

FRP/GRP Cartridge Filter Housings High Flows
HF FTP filter housings lodge high flow cartridges that optimize designing process in order to obtain the better flow/footprint ratio.
The bodies of these filters are designed according to the Ad-Merkblatt* design code from pressure vessels and are made according to the 97/23 CE S. S.3.3 European Standard for Pressure Filters.
¦ Reduced footprint.
¦ Easy maintenance and cartridge replacement
procedures.
¦ Savings due to more compact housings.
¦ Reduced height and therefore very
suitable for containerized
Cartridge Filter Housings

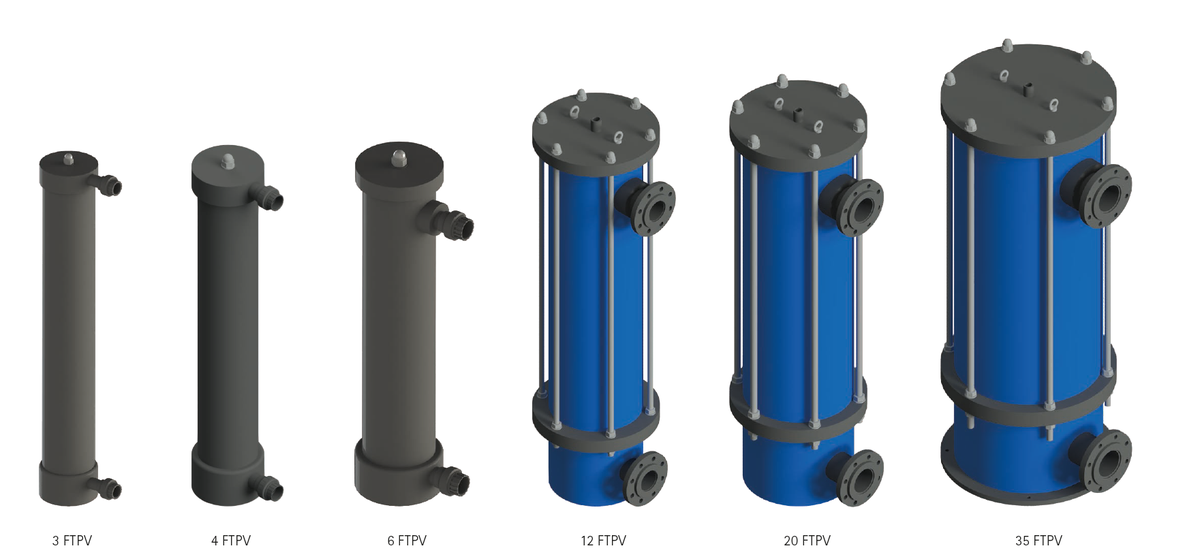

PVC Cartridge Filter Housings
Fluytec PVC filter housings combine design simplicity with high filtering quality. These are specially suitable in those applications that handle small amounts of salty water, both brackish and sea water: from 3m3/h to 150 m3/h. (3-35 cartridge elements)
These filter housings are designed according to the ASME design code for pressure vessels and manufactured according to the 2014/68/EU S.4.3 European Directive of Pressure Vessels. Standard Design Pressure is 6 Bar and Test Pressure is 9 Bar.
Cartridge Filter Housings
Stainless Steel Cartridge Filter Housings
Fluytec Steel Filters are especially suitable for applications in which, because of their specific needs (high pressures and/or temperatures of the fluid to be treated) plastic materials cannot be used to manufacture the filter bodies. Available steels: SS316, CSRL, Duplex & SDuplex.
Cartridge Filter Housings

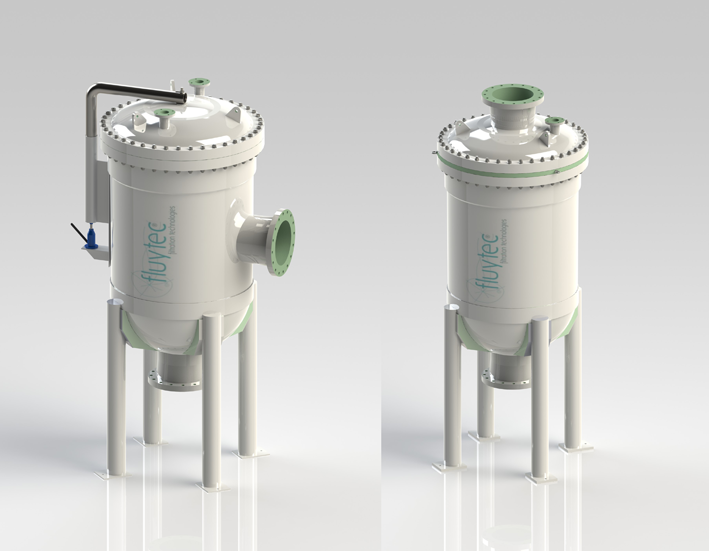

FRP/GRP Cartridge Filter Housings Medium/Large
Fluytec’s FRP/GRP (Fiberglass Reinforced Polyester) Cartridge Filters are engineered to operate in heavy duty applications, providing superb filtration efficiency and durability.
The FTP series are available in two configurations:
Single Flange (SFL) allows individual cartridge replacement inside the housing and Sword System (B) allows for complete filtering package removal outside the housing.
Fluytec FTP Housings are offered according to the most relevant International Codes: Ad-Merkblatt or ASME X for
