Products

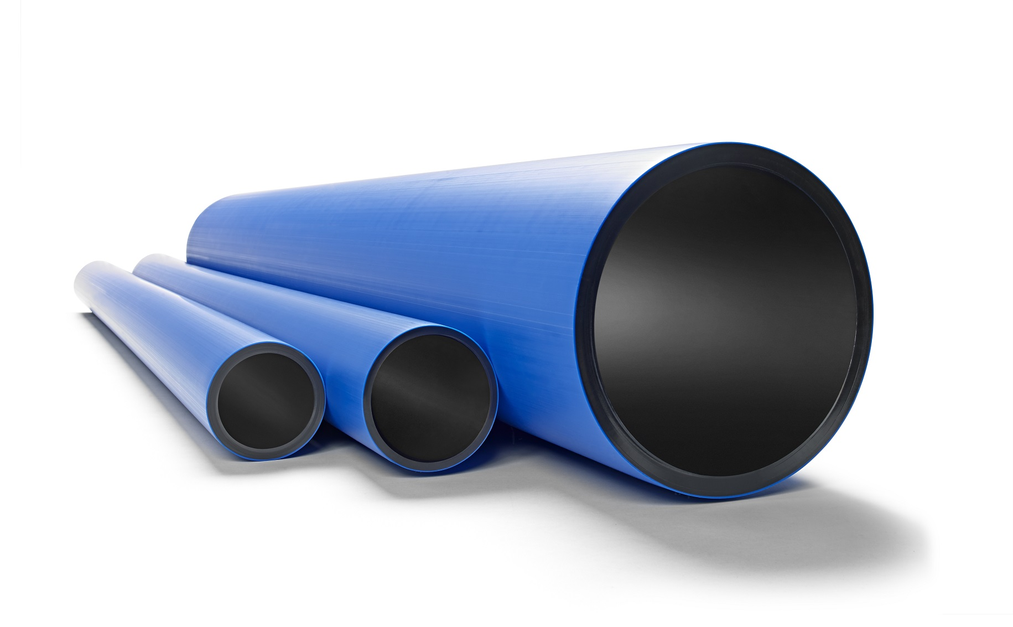

Pressure pipes made of PE 100 RC
Drinking water supply
• Material: polyethylene (PE 100 RC)
• Version & Colours: coex multilayer pipe
or single-layer solid-wall pipe with smooth ends
outside royal blue (similar to RAL 5005) and inside black (similar to RAL 9004)
or black (similar to RAL 9004) with royal blue stripes (similar to RAL 5005)
or royal blue coloured through (similar to RAL 5005, possible up to an outer diameter of 63 mm)
• Outer diameters, SDR levels & lengths:
- 20 to 630 mm
- 17 or 11
- 6, 12 and 20 m bars

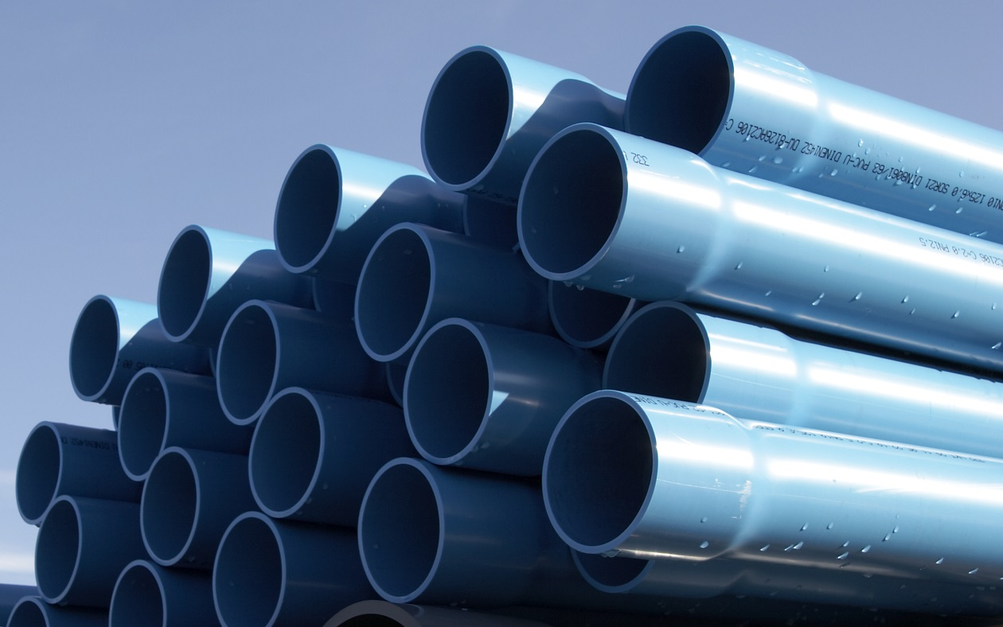

PVC-U pressure pipe
Pressure piping (suitable for drinking water, waste water and industrial applications)!
Our PVC-U pressure pipes are used as pressure pipelines. They are suitable for drinking water, waste water and industrial applications and are characterised by very good mechanical properties - high strength, rigidity and at the same time good impact resistance.
single-layer solid-wall pipe
with smooth ends
or optionally with moulded-on adhesive socket on one side (for SDR 34.4, 21 and 13.6)
6 up to 400 mm
5 and 6 m bars
special lengths on request
DIN 8061
DIN 8062
DIN EN 1452 drinking water
Special products
Special solutions (ultra filtrations, conveyors and more) for unusual applications, special colors, dimensions, individual (mech.) processing
One of our great strengths is to find special solutions for unusual applications and to develop special products. Special colors are just as possible as individual pipe dimensions, special lengths in series and individual production, our own material formulations and mechnical prosessed plastic components according to customer drawings.

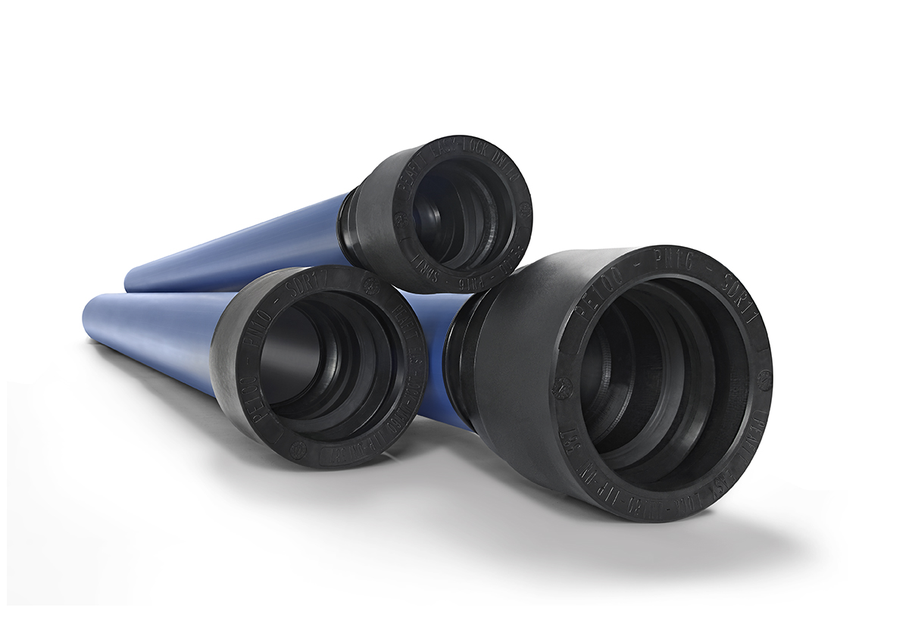

WKT Push-Fast-System (plug-in sockets)
Drinking water supply
• Material: polyethylene (PE 100 RC)
• Versions & colours:
coex multilayer pipe
or single-layer solid-wall pipe
with welded, longitudinally friction-locked plug-in socket
outside royal blue (similar to RAL 5005) and inside black (similar to RAL 9004)
or black (similar to RAL 9004) with royal blue stripes (similar to RAL 5005).
• Outer diameters, SDR levels & lengths:
90 to 250 mm; 17 or 11; 6 and 12 m bars (special lengths on request)
Pressure pipes made of PE 100 RC
Waste water disposal
• Material: polyethylene (PE 100 RC)
• Versions & colours:
coex multilayer pipe
or single-layer solid-wall pipe
with smooth ends
or optionally with welded, longitudinally friction-locked plug-in socket
green outside (similar to RAL 6016) and black inside (similar to RAL 9004)
or brown outside (similar to RAL 8023) and black inside (similar to RAL 9004)
or black (similar to RAL 9004) with brown stripes (similar to RAL 8023)
• Outer diameters, SDR levels & lengths
40 up to 630 mm;
17 or 11;
6, 12 and 20 m
Gravity drainage pipes made of PE 100
Pressureless waste water disposal
• Material: polyethylene (PE 100)
• Versions & colour:
coex multilayer pipe
or single-layer solid-wall pipe
with smooth ends
black (similar to RAL 9004) with light grey inner layer (similar to RAL 7040)
or light grey (similar to RAL 7040) with brown stripes (similar to RAL 8023)
• Outer diameters, SDR levels & lengths:
50 up to 630 mm;
17.6 or 11;
6, 12 and 20 m bars;
100 m coils (up to outer diameter 160 mm), other coil lengths on request; longer lengths on drums; special lengths on request
Protective pipes made of PVC-U
Protective pipes for drinking water
• Material: plasticiser-free polyvinyl chloride (PVC-U)
• Versions & colours: single-layer solid-wall pipe
with moulded-on adhesive socket on one side
optionally with smooth ends
with a 20 mm spiral warning tape (blue with black imprint "attention water pipe" or yellow with black imprint "attention gas pipe")
optionally with 3 x 56 slits per meter (0.5 mm slit width, offset by 120 degrees)
special colours on request
• Outer diameters, SDR levels & lengths
- 50 to 225 mm
- 1 and 1.5 m bars
