Products

PressureWave™ Series

Pressure Tank

PressureWave™ tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, irrigation systems, and hydraulic hammer arresting. The PressureWave™ Series is constructed of a virgin polypropylene liner combined with an FDA approved high grade butyl diaphragm.

HydroGuard™ Series

Shock Arrestor

HydroGuard™ shock arrestors are built to reduce or eliminate hydraulic shock, otherwise known as water hammer. They do this by absorbing pressure surges within water or other fluids that are suddenly stopped or forced in other directions by fast closing valves. HydroGuard™ shock arrestors are best used at the point of shock and should be installed as close to the valve or piping where the shock originates from.

Inline Filter

Inline Filter

Sediment filter, granular activated carbon filter and 2-in-1 Design (BLOCKFREE™ Technology) Available as 10" Standard (T33), 11" Standard (T33-11") and 11” Wide body (K33) Maximum pressure: 6.9 bar / 100 psi Temperature Range: 40 - 100°F (4.4 – 37.8°C) Our premium quality inline filters are perfect for use in: Reverse Osmosis systems as final stage polishing filters Refrigerators & ice makers Water coolers & fountains Coffee makers & barista stations Under sink applications

Challenger™ Series

Pressure Tank

Water Chamber, Patented Controlled Action Design: Efficient and cost effective, Challenger™ tanks are designed with a patented controlled action CAD-2 diaphragm assembly. It features a chlorine resistant 100% butyl diaphragm with a precision molded copolymer polypropylene liner for superior air and water separation.

C2-Lite CAD™ Series

Composite Pressure Tank

If you are looking for the proven performance of a GWS steel tank in a lightweight composite design, C2-Lite CAD™ series is the answer. Efficient and cost effective, C2-Lite CAD™ tanks are designed with the patented controlled action diaphragm design of GWS Challenger™ tanks. Unlike other composite tanks that hide tired old bag technology in a plastic shell, the patented CAD-2 diaphragm design is stronger and will not crease and wear out.

HeatWave™ Series

Expansion tanks

With an incorporated hex nut system connection, HeatWave™ tanks are easy to install. Its air chamber sealed with a brass air valve and o-ring sealed air cap will provide many years of leak free and service free life. It's two part polyurethane, epoxy primed paint finish will withstand the harshest indoor and outdoor climates throughout the world. HeatWave™ tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.

OneStop+™

Plug & Play Salt-Free Anti-Scale

The OneStop Plus™ system is not a softener, it is a water conditioner designed to protect open circuit piping from limescale deposits. It can be installed as a Point-of-Entry device, for both cold and hot water, or as a Point-of-Use device, installed directly before the equipment that needs to receive treated water (saunas, dishwashers, washing machines, coffee machines, etc.).

C2-Lite UT

Composite utility tanks

The C2Lite UT™ series is a range of lightweight composite utility tanks designed to withstand years of tough conditions. Unlike C2Lite CAD Series tanks, the UT series tanks are not fitted with a diaphragm and can utilize full tank volume for water storage. The tanks come with a heavy-duty base which has been molded out of high-impact ABS for maximum strength and durability.

MixMaster

Baffle tank

The MixMaster™ series of composite baffle tanks are a superior alternative to traditional contact tanks found in many water treatment systems. MixMaster™ tanks utilize a patented internal baffle and diffuser system that redirects the treated water through a series of internal chambers. This unique baffle design creates turbulence which boosts the mixing of water and injected disinfectants such as chlorine or ozone, while nearly quadrupling the contact time compared with a standard contact tank.

Grooved Polypropylene Sediment Filters

Grooved Sediment Filter

As part of our commitment to sustainability, GWS is proud to present the next generation of sediment removal technology – the Grooved PP Sediment Filter.Made in-house with our state-of-the-art, proprietary manufacturing process, the Grooved PP Sediment Filter features a dual-gradient structure with up to 80% more surface area, resulting in a three-fold increase in sediment-removing capacity. Use in combination with GWS filter housings.

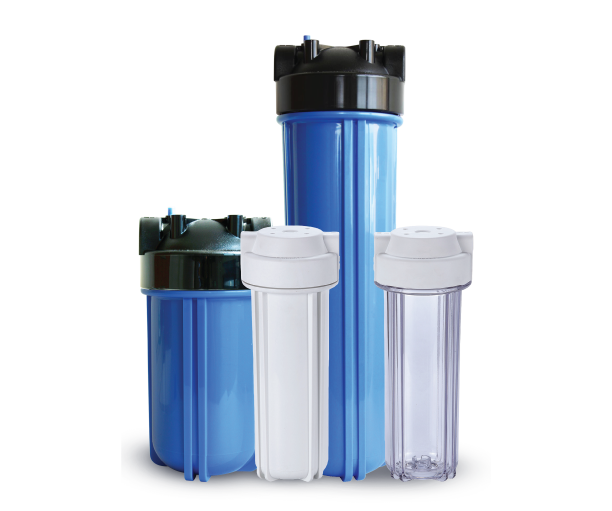

Filter Housing

Filter Housing

10" and 20" standard and jumbo housings 10” housings available in 9-3/4” or 9-7/8” length options Available with ¼”, ½” ¾” and 1” NPT or BSP connections Maximum working pressure: 6.9 bar / 100 psi Available with Polypropylene or Clear Acrylonitrile Styrene (AS) sump Ultrapure polypropylene versions available for applications that require housings made with nonreactive materials

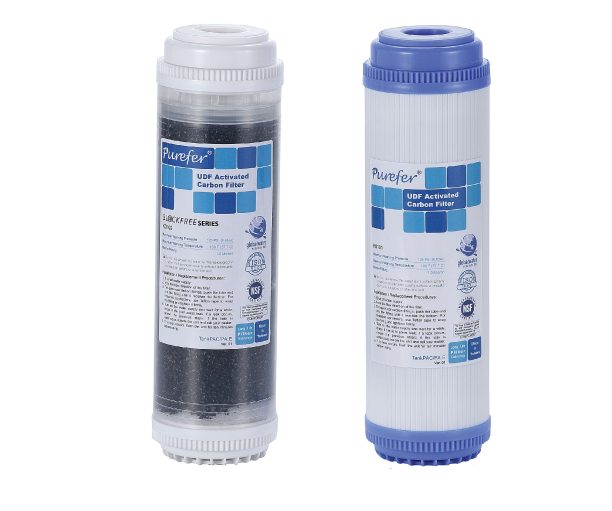

GAC Media Cartridge

GAC Media Cartridge

Available as traditional granular activated carbon filter or with 2-in-1 BLOCKFREE™ technology For use with standard 10" filter housings Temperature Range: 40 - 100°F (4.4 – 37.8°C) Lengths available: 9-3/4” or 9-7/8” Our premium quality media cartridges are perfect for use as: Ideally suited for chlorine taste and odor reduction Can be used as a standalone water filter or as prefilter for water purifiers and other water filtration systems
